Installing lowered foot pegs

Installing Procycle foot pegs on the DR650

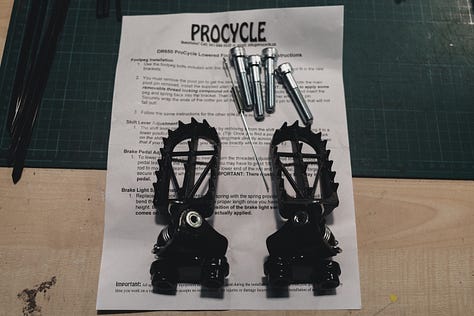

Parts

Procycle lowered foot pegs $180

Installation break side (right)

Helpful videos and info: Biker Bits

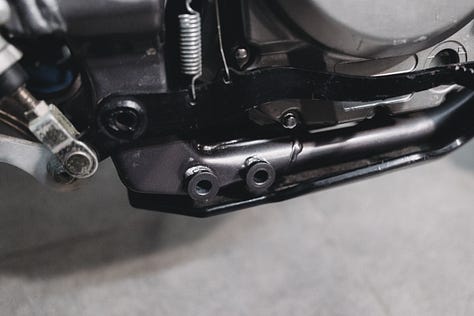

Remove the old footrests.

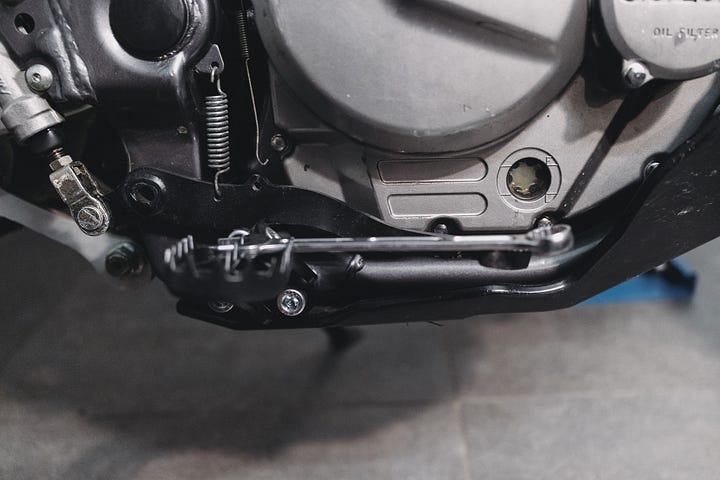

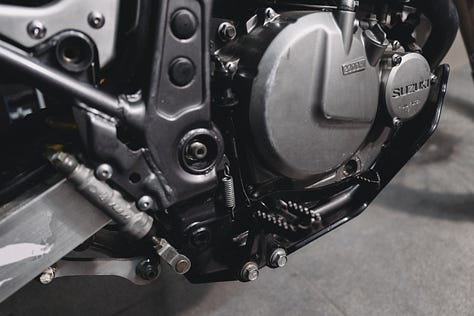

Attach the new footrests using the screws supplied (with Loctite blue).

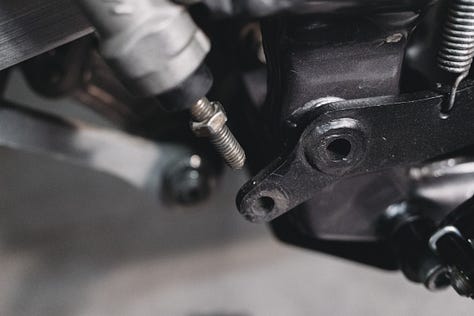

Remove the pin and the adjustment clip and grind off the adjustment rod by approx. 3 to 5 mm.

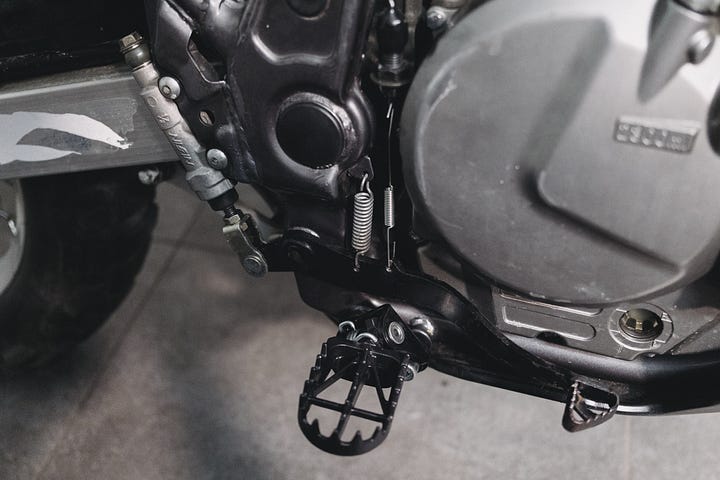

Adjust the pedal so that the tip of the paddle is horizontal in relation to the footrest. Do not fasten the bolt yet!

Remove the original brake light spring and replace it with the one supplied. Make sure that the length is correct so that the brake light illuminates when the pedal is pressed.

Now push in the pin, attach the cutter pin and secure the lock nut on the adjusting rod.

Installation shifter side (left)

Remove old foot pegs.

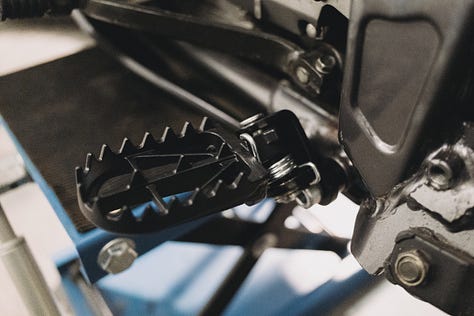

Fix new foot pegs with supplied bolts (using loctite blue).

Remove the shift lever and install it in a lower position.

Check wearing motorcycle boots whether the position is correct and mark position on the shift and lever for future reference.
